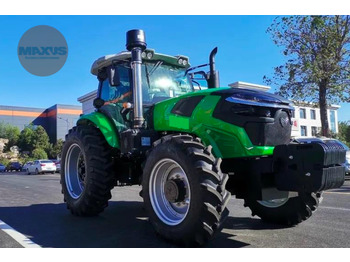

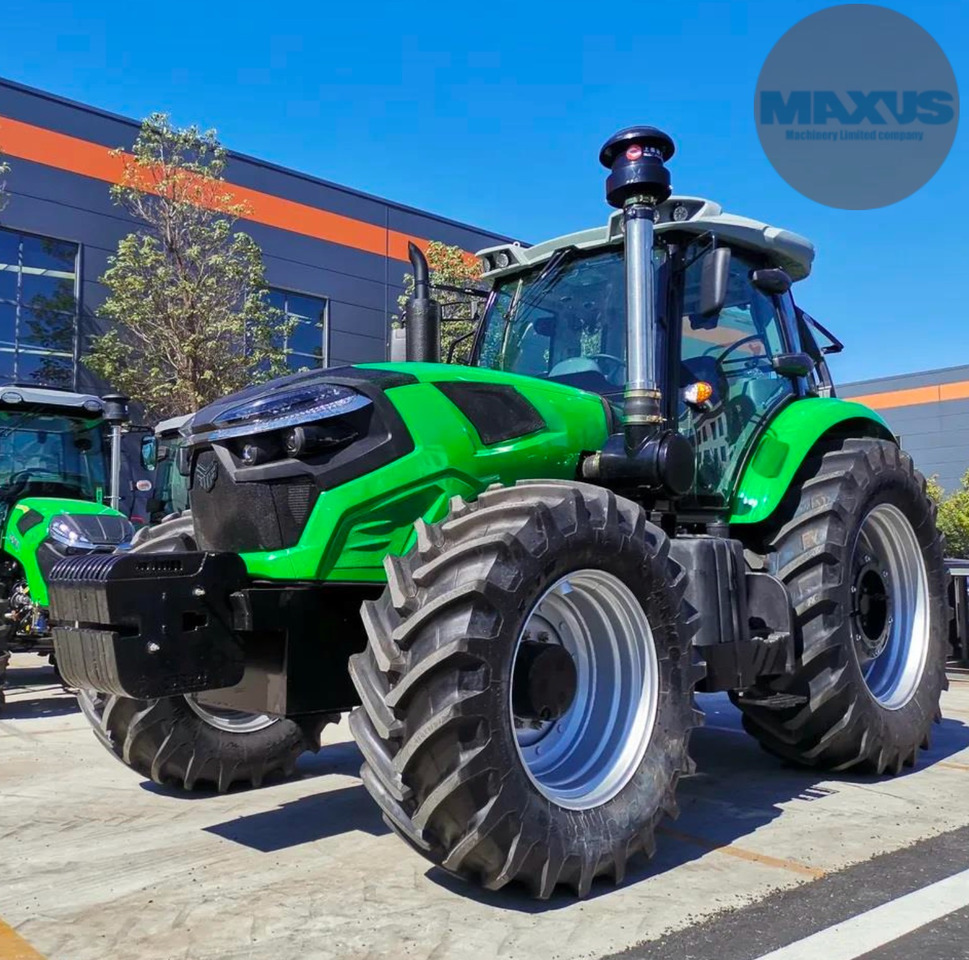

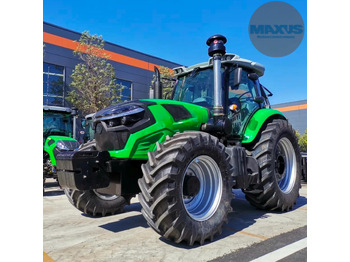

Nauja Traktorius Maxus Maxus Tractor

MAXUS Specification

Performance & General Data

Power (HP): 220

Model: MAXUS 220, Wheeled Tractor

Frame Type: ROPS (Roll Over Protection Structure)

Drive Type: 4WD

Dimensions

Overall Dimensions (L × W × H): 5320 × 2750 × 3120 mm (top of air filter)

Wheelbase: 2840 mm

Common Track Width (Front/Rear): 1940/1760 mm

Adjustable Track Width (Front/Rear): 1940, 2040, 2100, 2200 / 1760-2380 mm

Minimum Ground Clearance: 410 mm (bottom of traction seat)

Horizontal Distance from Front of Clutch Housing to Rear Axle Centerline: 1420 mm

Intermediate Shaft Hole Center Distance: 125 mm

Weight & Load

Minimum Weight: 7750 kg

Standard Counterweight (Front/Rear): 240 kg / 480 kg

Minimum Power-to-Weight Ratio: 43.79 kg/kW

Transmission

Number of Gears (Forward/Reverse): 16+16

Main Gear Stages: 4

Range Shift Gears: 4 × (1+1)

Maximum Theoretical Speed: 36.03 km/h

Engine-to-Clutch Connection: Direct Drive

Engine

Model: SC7H240G3

Configuration: Inline, Vertical, Water-cooled, Four-stroke

Intake Mode: Intercooling

Number of Cylinders: 6

Rated Power: 177 kW

Rated Speed: 2200 rpm

Cooling System: Water-cooled

Air Filter Type: Dry

Exhaust Chamber Dimensions (Diameter × Length): φ230 × 900 mm

Exhaust Muffler Weight: 7.2 kg

Steering System

Type: Fully Hydraulic

Steering Axle: Front Wheels

Gearbox & Transmission

Main Gear Mode: Mechanical Stepped Gear

Auxiliary Gear Mode: Mechanical Stepped Gear

Wheels & Tires

Front Tires: 540/65R28

Rear Tires: 650/65R38

Hydraulic System

Type: Independent

Suspension Type: Three-point rear suspension

Suspension Category: Category III

Number of Hydraulic Output Groups: 3

Safety Valve Full Open Pressure: 18 ± 0.5 MPa

Power Take-Off (PTO)

Number of PTO Splines: 8

Standard PTO Speed: 540 / 1000 rpm
