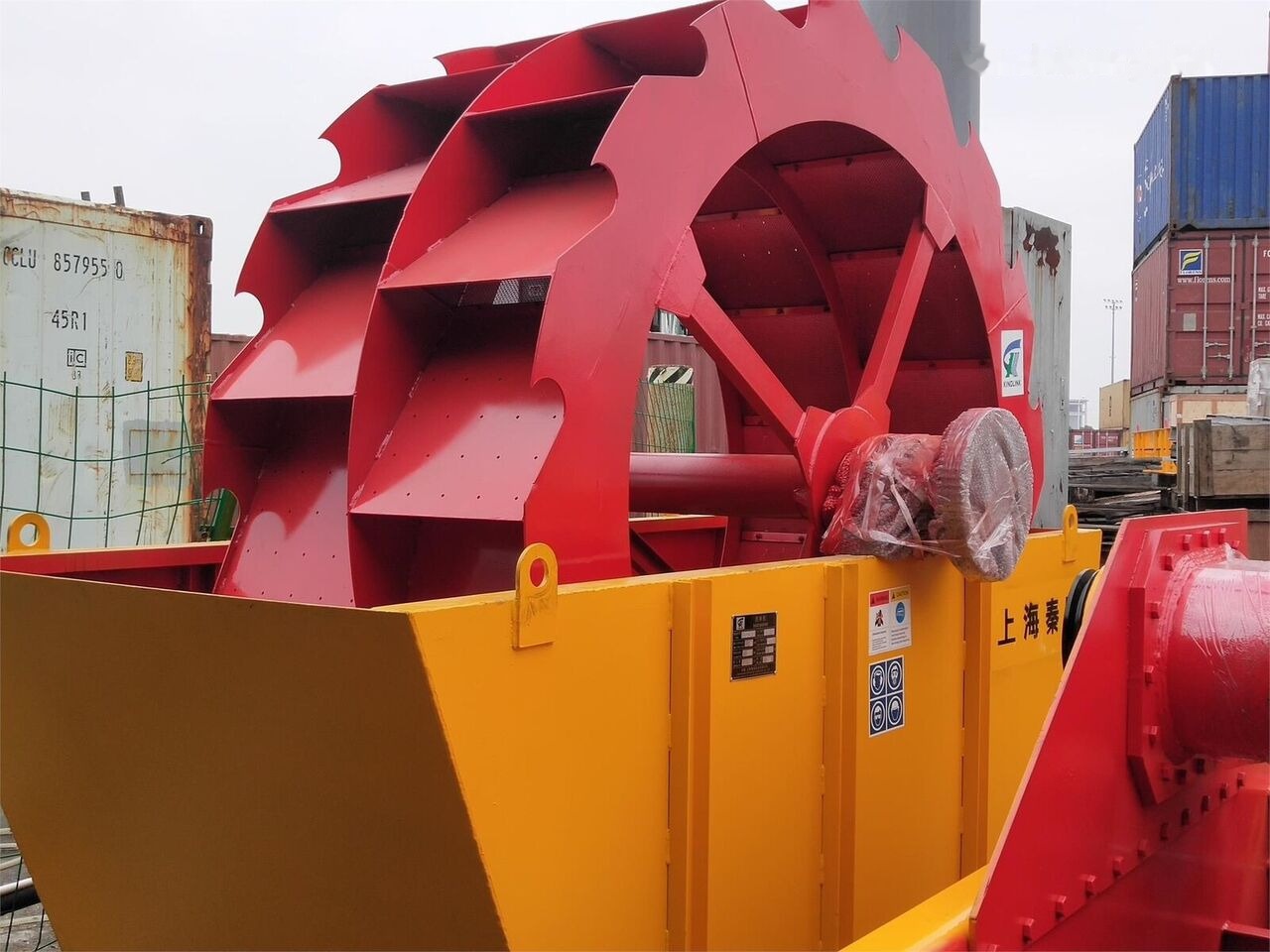

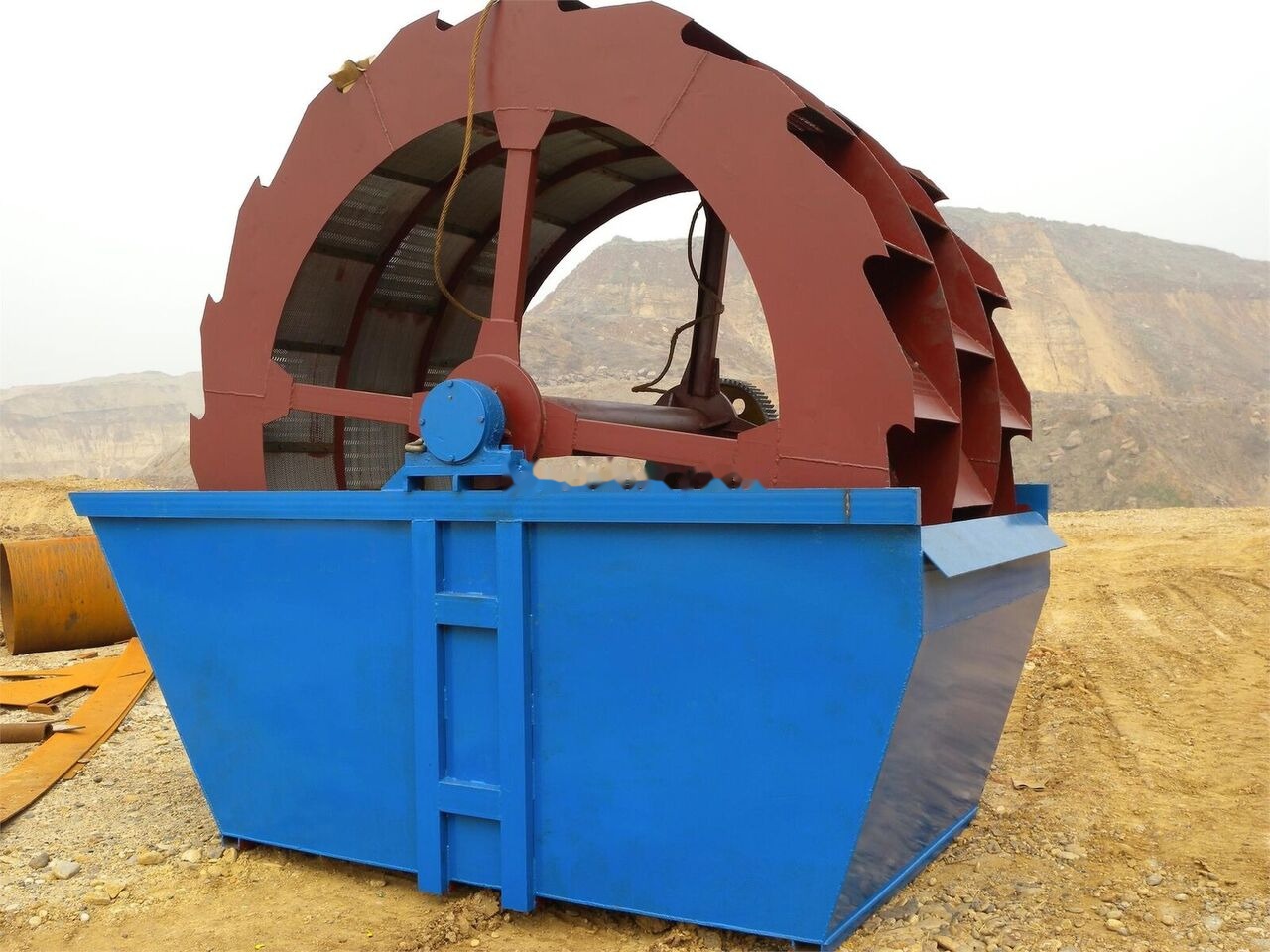

Nauja Statybinė technika New KINGLINK XSD2610 Washing Machine Application

SaleListPrice: 8000

brand: KINGLINK

Introductions of XS Wheel Wahser

Sand Washing Machine Application

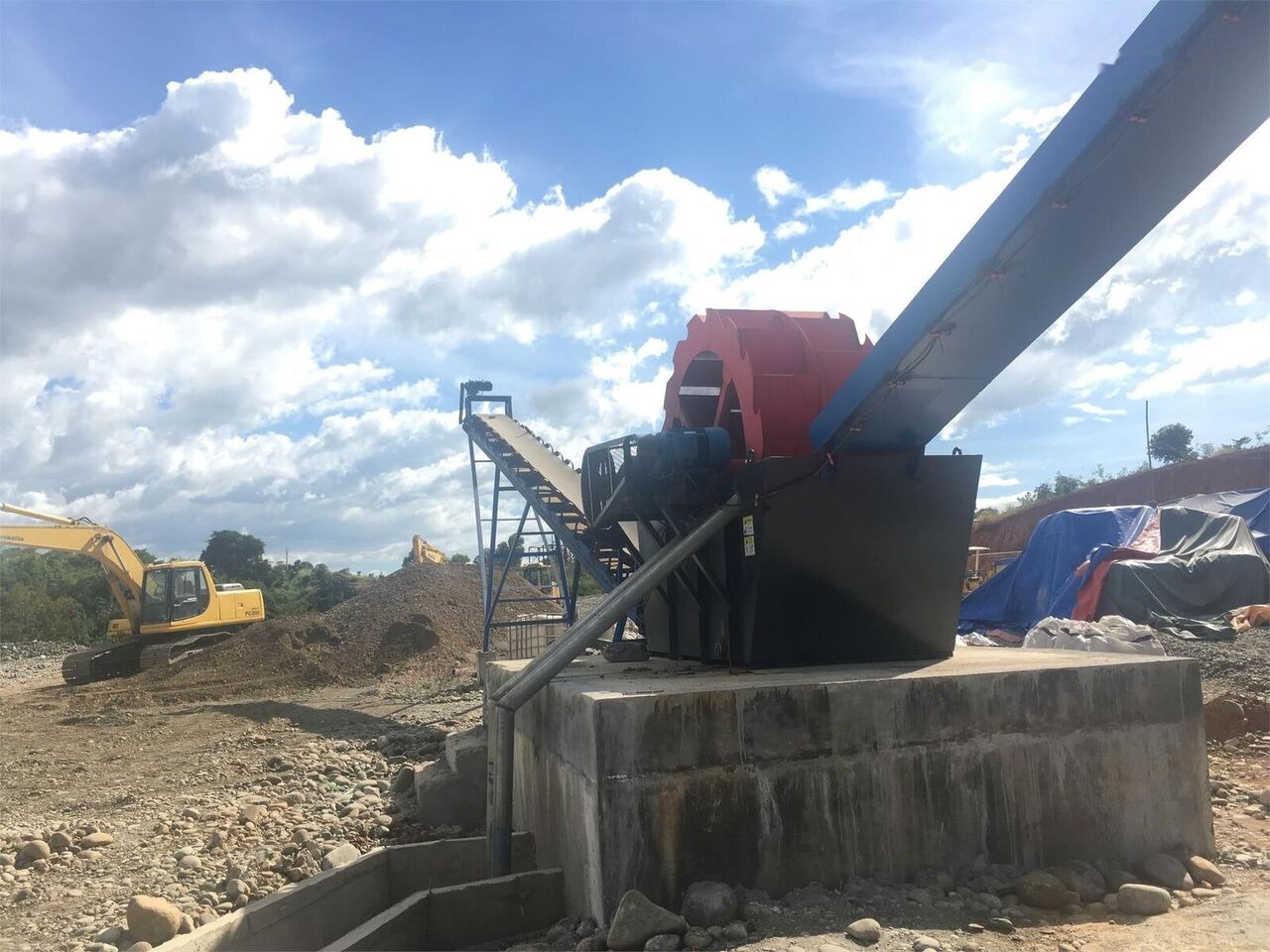

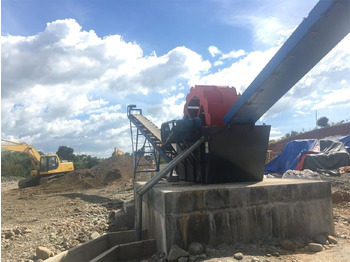

XS Wheel Sand Washing Machine(sand washer) is widely used in particle aggregate sand screw washing

grading and dehydrating quartz and sand in construction site

sand stone factories

hydropower station and concrete dam site

precast concrete factory

glass factory and etc. It is especially applicable to wash construction sand and paving sand

Features of sand washing equipment

1. This machine's structure is simple. The impeller drive device is separated with water and the watered materiel avoiding that the bearing is damaged by deeping in water

sand

or contamination

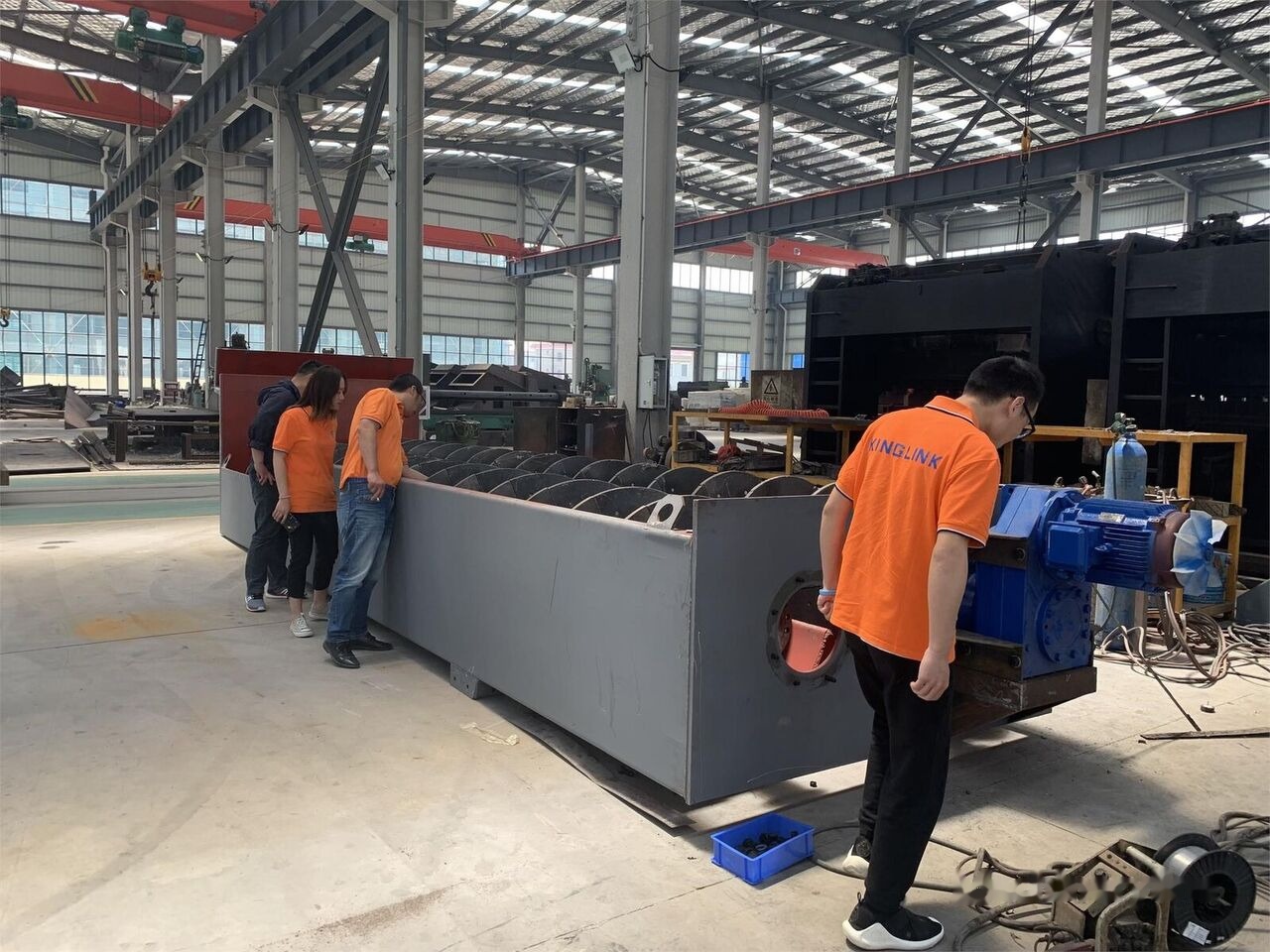

2. This machine has obvious advantages compared with screw sand washing equipment/washer

3. The medium and fine sand are washed away less. The washed construction sand's gradation and modulus of fineness can get the standard which is regulated in national ' construction sand' and ' construction scree and gravel

4. There is almost no wearing part except screen mesh

5. The machine usage life is long

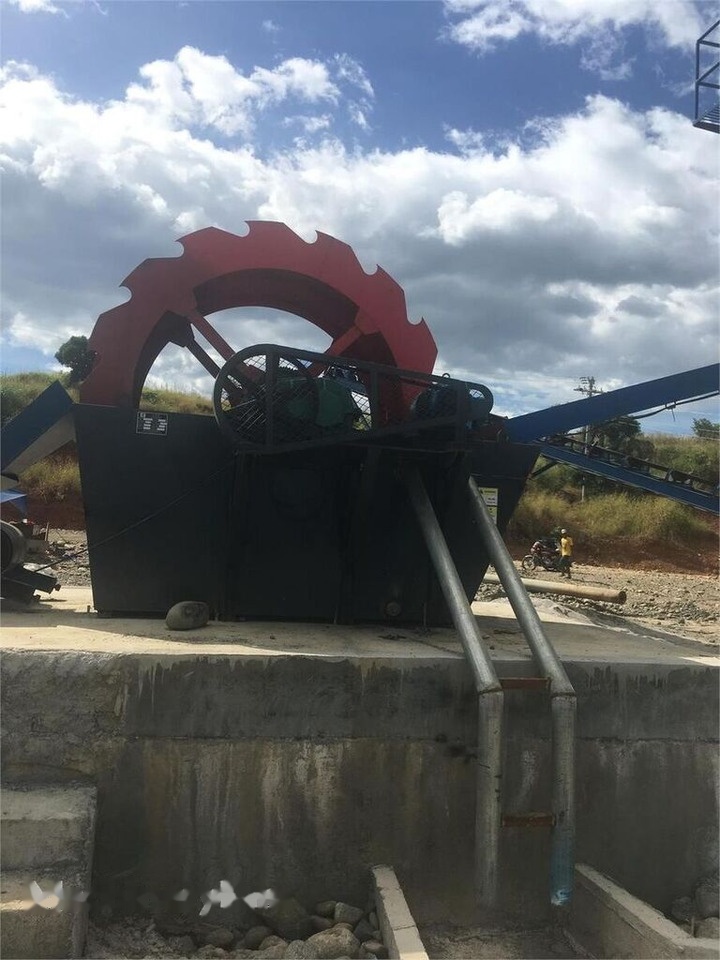

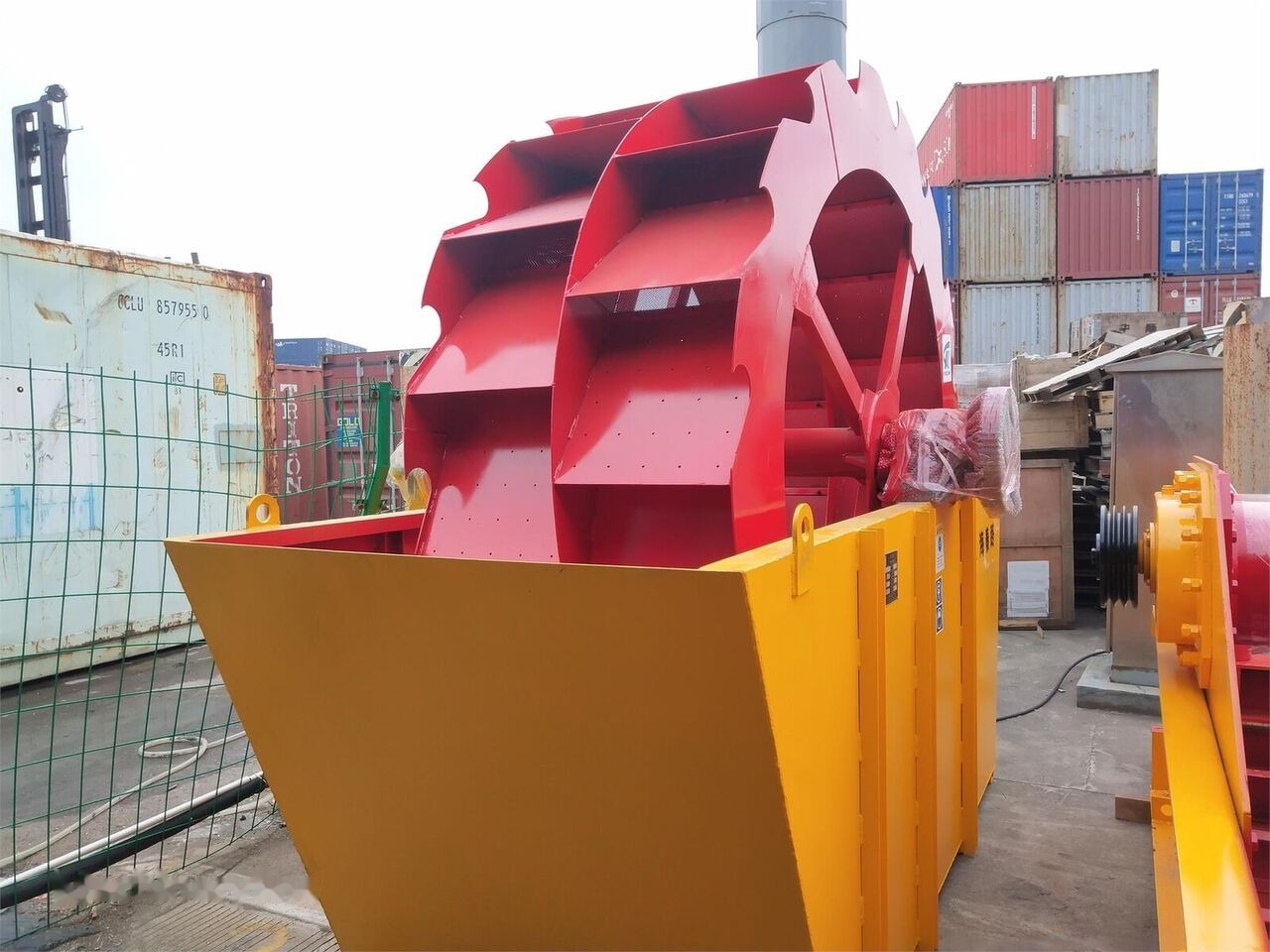

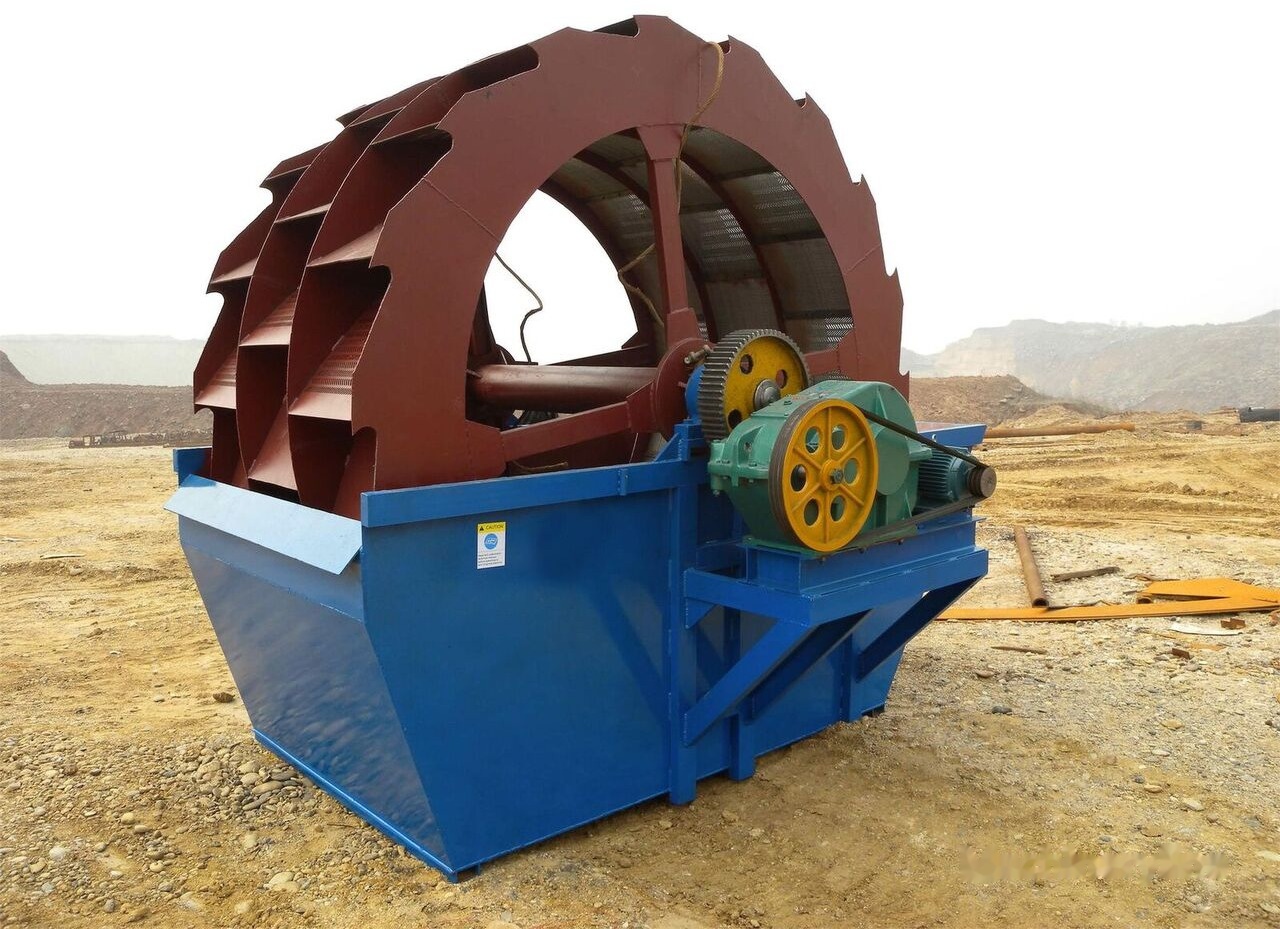

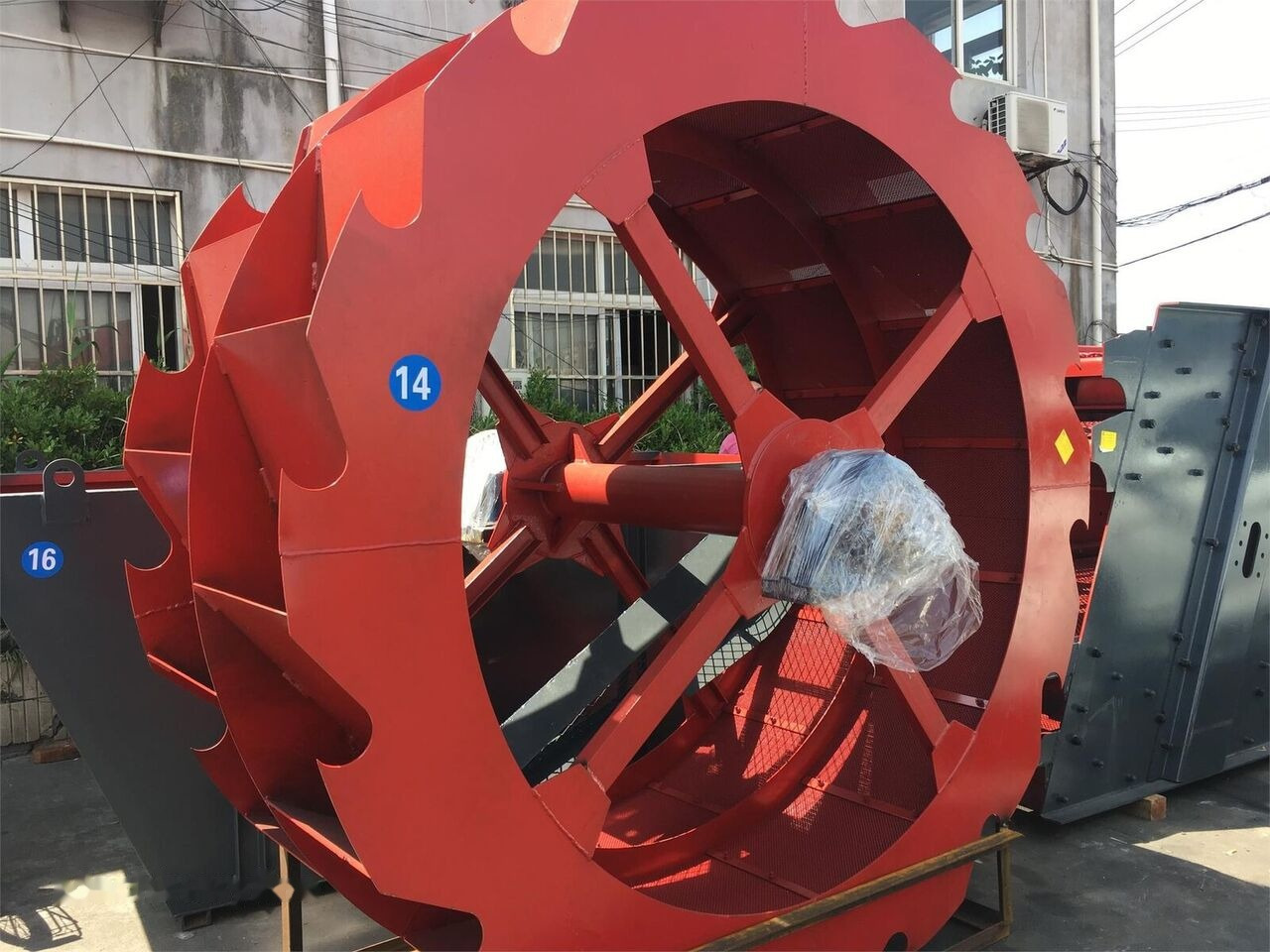

Operating principle of artificial sand washer (Bucket sand washer)

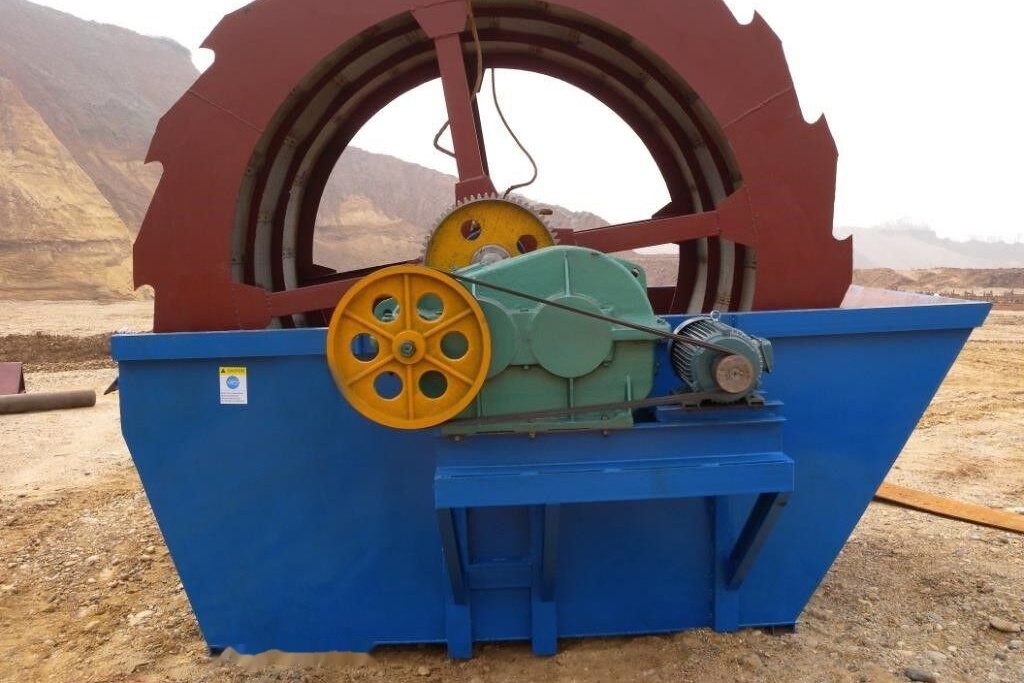

The electric motor runs slowly with the impellor after decelerated by the belt

decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder

rolls with the impellor

and grinds each other. The impurity covering the sand is washing away. At the same time

add more water

the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process

the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly

the water begins to drop through the mesh and fall back in the washing launder. On one hand

water is removed from the sand and stone

on the other hand

the water can be fully used. Finally

the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
