Nauja Žemo profilio platforma puspriekabė OZGUL LW4 EU FIX

TECHNICAL SPECIFICATIONS

MASSES & DIMENSIONS

-Gross Vehicle Weight (kg) : 70.000

-Loading Platform Length (mm) : 9.000

-Weight of Axle Group (kg) : 48.000

-Total Lenght (mm) : 13.550

-Kingpin Capacity (kg) :22.000

-Total Width (mm) : 2.550

-Curb Weight (kg) : 13.000

-Loading Platform Height (mm) : 920

-Pay Load (kg) : 57.000

-Height of 5.th Wheel (mm) : 1.310

CONSTRUCTIONS

-Base Chassis

-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis

-Outer frame is UPE 240 profile

-Welding (Chassis) : Automatic ARC submerged

-Welding (Superstructure) : Automatic robot welding

-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand

-Drum brakes 4 x 12 Ton axles

-Axle Lifting : 1st axle automatic 4th axle manuel lifting

-Suspension (Type) : Air Suspension

-Steering Axles : -

-King pin (Type) : 1 position with 1x coupling-pen 2”

-Tires : 16+1 Units, 245 / 70 R 17.5

-Rims : 16+1 Units, 6.75 x 17.5 steel rims

-Landing Gear : Mechanical operated by one side, two speed

-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation

-Brake Chamber

-2 axles with 4 units emergency brake chambers.

-2 axle with 4 units service brake chambers.

Electric System

-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand

-2 x Rear Stop Lights. - 4 x Side LED Lights

-2 x White LED Lights - 2 x Front LED Lights

-2 x Registration Plate Lights - 2 x rotating Lights

Floor

-Above tyres and edges of platform are covered chequered sheet and hard wood

-The middle surface is covered by flat sheet steel

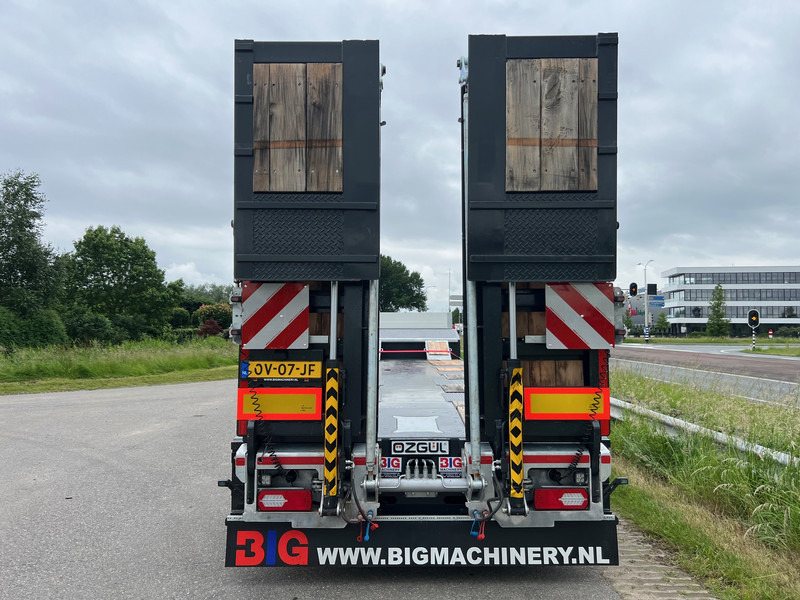

Rear Loading Ramps

-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable

-push – button for remote control

-Folding type rear ramps length 2500 mm +1500 mm width 900 mm

-Rear ramps are sliding internal and external hydraulic

-Short steel ramps behind of neck.

Paint Application

-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint

TECHNICAL SPECIFICATIONS ACCESSORIES

-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type

-4 x Certificated Expray mud flaps.

-1 x Plastic water tank

-2 x Wheel chocks and holders

-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm

-2 x Side Protections, Aluminium

-1 x Tool box.

-1 x spare Wheel carrier with 1 tire(on the gooseneck)

-2 x Manual support Legs at the rear.

-2 x Reflective tape and reflector sign at the rear and sides.

-2 x Side extensions reflector

-Steel front panel(height:400mm)

-Aluminum side panels on gooseneck section(height:400mm)

-1 plaque places on rear ramps or bumper

More information

CE mark: yes

COC available: Yes
