GPU Guinault GA120 lizingą

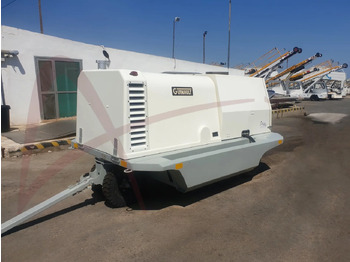

GUINAULT GPU type : GA 120V141

• Distribution :

2x400Hz circuits , 1(or 2)x28VDC circuit(s);

• Nominal power of the 400Hz generation : 120 kVA at p.f. 0,8

- Admissible overload on the 400Hz generation : 150 kVA at p.f. 0,8, during 5 min.

• Nominal power of the 28VDC generation: 600A permanent

- Admissible overloads on the 28VDC generation : 800A functional overload

2400A at instantaneous peak

• Nominal power of the 50Hz generation: 2.3 kW at p.f. 0,8 (Option)
• Diesel engine :

DEUTZ type BF6M 1013EC at 2182 rpm

• 400 Hz GUINAULT alternator type AS250M150V3
• GUINAULT transformer/rectifier unit type RS493
• Operating temperature : - 20°C to + 45°C

Dimensions :

Length 3350 mm

Width 1900 mm

Height 1850 mm

Weight Approx. : 2500 to 2700 kg (According to the equipment)
